Estes Orion II Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |

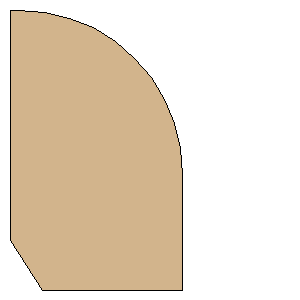

Download as PDF | Point 1: | (0.0000 mm, 71.1200 mm) | | Point 2: | (10.1600 mm, 86.3600 mm) | | Point 3: | (53.3400 mm, 86.3600 mm) | | Point 4: | (53.3400 mm, 55.8800 mm) | | Point 5: | (53.3400 mm, 50.8000 mm) | | Point 6: | (52.7146 mm, 42.8531 mm) | | Point 7: | (50.8537 mm, 35.1019 mm) | | Point 8: | (47.8031 mm, 27.7373 mm) | | Point 9: | (43.6381 mm, 20.9405 mm) | | Point 10: | (38.4610 mm, 14.8790 mm) | | Point 11: | (32.3995 mm, 9.7019 mm) | | Point 12: | (25.6027 mm, 5.5369 mm) | | Point 13: | (18.2381 mm, 2.4863 mm) | | Point 14: | (10.4869 mm, 0.6254 mm) | | Point 15: | (2.5400 mm, 0.0000 mm) | | Point 16: | (0.0000 mm, 0.0000 mm) | | Width: | 2.8000 inches (71.1200 mm) | | Height: | 3.4000 inches (86.3600 mm) |
