Rocketry Parts Database >> Fins >>

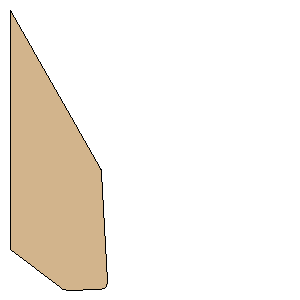

Peter Always MX-774 Hiroc Freefo Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 184.1500 mm)
Point 2:(38.7802 mm, 213.6816 mm)
Point 3:(39.1464 mm, 214.0384 mm)
Point 4:(39.5401 mm, 214.3647 mm)
Point 5:(39.9588 mm, 214.6582 mm)
Point 6:(40.3998 mm, 214.9170 mm)
Point 7:(40.8601 mm, 215.1396 mm)
Point 8:(41.3369 mm, 215.3243 mm)
Point 9:(41.8270 mm, 215.4702 mm)
Point 10:(42.3272 mm, 215.5761 mm)
Point 11:(42.8344 mm, 215.6414 mm)
Point 12:(43.3451 mm, 215.6657 mm)
Point 13:(68.7981 mm, 215.6020 mm)
Point 14:(69.8237 mm, 215.5161 mm)
Point 15:(70.8219 mm, 215.2656 mm)
Point 16:(71.7665 mm, 214.8571 mm)
Point 17:(72.6327 mm, 214.3014 mm)
Point 18:(73.3978 mm, 213.6131 mm)
Point 19:(74.0417 mm, 212.8102 mm)
Point 20:(74.5474 mm, 211.9139 mm)
Point 21:(74.9017 mm, 210.9476 mm)
Point 22:(75.0952 mm, 209.9368 mm)
Point 23:(75.1229 mm, 208.9080 mm)
Point 24:(70.5631 mm, 124.8773 mm)
Point 25:(70.5402 mm, 124.5831 mm)
Point 26:(70.5037 mm, 124.2902 mm)
Point 27:(70.4537 mm, 123.9993 mm)
Point 28:(70.3902 mm, 123.7111 mm)
Point 29:(70.3133 mm, 123.4262 mm)
Point 30:(70.2234 mm, 123.1451 mm)
Point 31:(70.1204 mm, 122.8685 mm)
Point 32:(70.0047 mm, 122.5970 mm)
Point 33:(69.7361 mm, 122.0716 mm)
Point 34:(0.0000 mm, 0.0000 mm)
Width:7.2500 inches (184.1500 mm)
Height:8.4908 inches (215.6657 mm)
