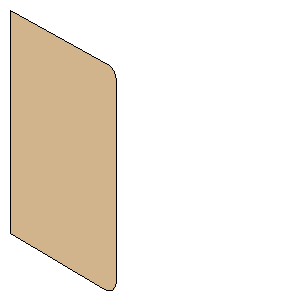

Semroc-Yung\'un\'s Nuke.rkt Free Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 48.2600 mm) | | Point 2: | (20.2918 mm, 60.1524 mm) | | Point 3: | (21.1360 mm, 60.3589 mm) | | Point 4: | (22.1346 mm, 60.3589 mm) | | Point 5: | (22.6722 mm, 59.5908 mm) | | Point 6: | (22.8600 mm, 58.6278 mm) | | Point 7: | (22.8600 mm, 15.1259 mm) | | Point 8: | (22.4753 mm, 13.2259 mm) | | Point 9: | (21.3429 mm, 11.8780 mm) | | Point 10: | (0.0000 mm, 0.0000 mm) | | Width: | 1.9000 inches (48.2600 mm) | | Height: | 2.3763 inches (60.3589 mm) |
