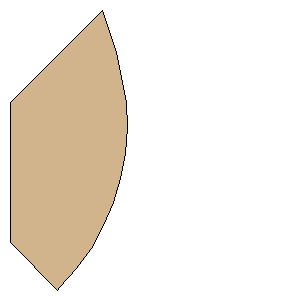

Thingus_1.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 37.9681 mm) | | Point 2: | (12.9273 mm, 50.8822 mm) | | Point 3: | (13.5194 mm, 50.2826 mm) | | Point 4: | (18.0961 mm, 45.1138 mm) | | Point 5: | (22.0847 mm, 39.4786 mm) | | Point 6: | (25.4379 mm, 33.4438 mm) | | Point 7: | (28.1162 mm, 27.0806 mm) | | Point 8: | (30.0878 mm, 20.4643 mm) | | Point 9: | (31.3295 mm, 13.6730 mm) | | Point 10: | (31.8266 mm, 6.7870 mm) | | Point 11: | (31.5733 mm, -0.1122 mm) | | Point 12: | (28.8358 mm, -13.6250 mm) | | Point 13: | (25.1433 mm, -25.2062 mm) | | Point 14: | (0.0000 mm, 0.0000 mm) | | Width: | 1.4948 inches (37.9681 mm) | | Height: | 2.9956 inches (76.0884 mm) |
