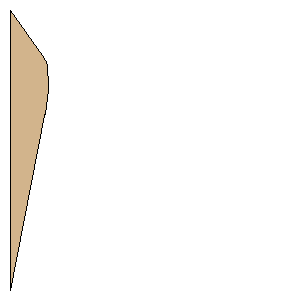

Scorpion.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 63.3115 mm) | | Point 2: | (7.8602 mm, 23.8958 mm) | | Point 3: | (7.8672 mm, 23.8599 mm) | | Point 4: | (7.8741 mm, 23.8238 mm) | | Point 5: | (7.8808 mm, 23.7878 mm) | | Point 6: | (7.8872 mm, 23.7517 mm) | | Point 7: | (7.8934 mm, 23.7156 mm) | | Point 8: | (7.8995 mm, 23.6794 mm) | | Point 9: | (7.9053 mm, 23.6432 mm) | | Point 10: | (7.9109 mm, 23.6070 mm) | | Point 11: | (7.9215 mm, 23.5344 mm) | | Point 12: | (8.6944 mm, 18.0136 mm) | | Point 13: | (8.7113 mm, 17.8831 mm) | | Point 14: | (8.7254 mm, 17.7523 mm) | | Point 15: | (8.7369 mm, 17.6213 mm) | | Point 16: | (8.7457 mm, 17.4900 mm) | | Point 17: | (8.7517 mm, 17.3586 mm) | | Point 18: | (8.7550 mm, 17.2271 mm) | | Point 19: | (8.7556 mm, 17.0956 mm) | | Point 20: | (8.7535 mm, 16.9640 mm) | | Point 21: | (8.7410 mm, 16.7012 mm) | | Point 22: | (8.5269 mm, 13.5613 mm) | | Point 23: | (8.4934 mm, 13.2123 mm) | | Point 24: | (8.4407 mm, 12.8657 mm) | | Point 25: | (8.3690 mm, 12.5226 mm) | | Point 26: | (8.2784 mm, 12.1839 mm) | | Point 27: | (8.1693 mm, 11.8507 mm) | | Point 28: | (8.0419 mm, 11.5241 mm) | | Point 29: | (7.8967 mm, 11.2050 mm) | | Point 30: | (7.7341 mm, 10.8944 mm) | | Point 31: | (7.3588 mm, 10.3024 mm) | | Point 32: | (0.0000 mm, 0.0000 mm) | | Width: | 2.4926 inches (63.3115 mm) | | Height: | 2.4926 inches (63.3115 mm) |
