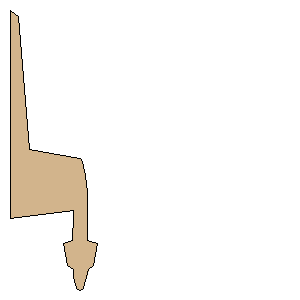

Estes Interceptor E Freeform Fin Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 313.4090 mm)
Point 2:(95.5040 mm, 301.7520 mm)
Point 3:(95.5040 mm, 326.3900 mm)
Point 4:(94.4880 mm, 329.9460 mm)
Point 5:(94.2614 mm, 345.6640 mm)
Point 6:(80.5120 mm, 351.0400 mm)
Point 7:(86.6140 mm, 383.2860 mm)
Point 8:(95.3419 mm, 390.1440 mm)
Point 9:(96.0794 mm, 401.7820 mm)
Point 10:(98.3149 mm, 412.3210 mm)
Point 11:(100.5500 mm, 418.3890 mm)
Point 12:(102.7580 mm, 420.1070 mm)
Point 13:(105.9180 mm, 420.6240 mm)
Point 14:(108.4490 mm, 419.8480 mm)
Point 15:(110.0010 mm, 418.0370 mm)
Point 16:(112.0470 mm, 411.0430 mm)
Point 17:(114.9210 mm, 402.1010 mm)
Point 18:(117.3480 mm, 390.1440 mm)
Point 19:(125.7300 mm, 383.2860 mm)
Point 20:(131.8260 mm, 351.0410 mm)
Point 21:(117.0030 mm, 345.6650 mm)
Point 22:(117.0030 mm, 330.1590 mm)
Point 23:(116.0780 mm, 326.3900 mm)
Point 24:(116.0780 mm, 274.3200 mm)
Point 25:(115.4330 mm, 261.5300 mm)
Point 26:(113.8810 mm, 248.3380 mm)
Point 27:(110.7770 mm, 234.6280 mm)
Point 28:(108.7080 mm, 227.6430 mm)
Point 29:(106.3800 mm, 223.2460 mm)
Point 30:(103.8860 mm, 222.7580 mm)
Point 31:(29.2100 mm, 209.0420 mm)
Point 32:(12.7000 mm, 9.1440 mm)
Point 33:(0.0000 mm, 0.0000 mm)
Width:12.3389 inches (313.4090 mm)
Height:16.5600 inches (420.6240 mm)
