Rocketry Parts Database >> Fins >>

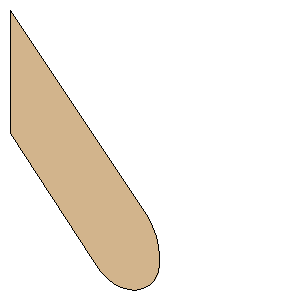

Estes Mosquito TK-1 (EST 0801) F Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 22.2250 mm)
Point 2:(14.7155 mm, 44.6987 mm)
Point 3:(15.1203 mm, 45.3733 mm)
Point 4:(16.1996 mm, 46.8574 mm)
Point 5:(17.4533 mm, 48.1765 mm)
Point 6:(18.7403 mm, 49.2062 mm)
Point 7:(20.0274 mm, 49.8497 mm)
Point 8:(21.3145 mm, 50.1071 mm)
Point 9:(22.4729 mm, 50.2358 mm)
Point 10:(23.7599 mm, 49.9784 mm)
Point 11:(25.0470 mm, 49.4636 mm)
Point 12:(25.9480 mm, 48.5626 mm)
Point 13:(26.5915 mm, 47.1468 mm)
Point 14:(26.8489 mm, 45.7310 mm)
Point 15:(26.8489 mm, 44.0578 mm)
Point 16:(26.7202 mm, 42.5133 mm)
Point 17:(26.2054 mm, 40.5827 mm)
Point 18:(25.5618 mm, 38.7808 mm)
Point 19:(24.5646 mm, 36.6036 mm)
Point 20:(0.0000 mm, 0.0000 mm)
Width:1.0570 inches (26.8489 mm)
Height:1.9778 inches (50.2358 mm)
