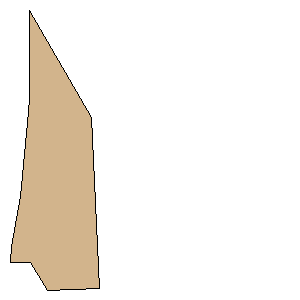

Semroc V2 (xKit) Freeform Fin Se Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 25.4000 mm) | | Point 2: | (-0.6096 mm, 32.0802 mm) | | Point 3: | (-2.5654 mm, 53.1114 mm) | | Point 4: | (-5.0800 mm, 67.2846 mm) | | Point 5: | (-5.5118 mm, 71.9074 mm) | | Point 6: | (0.2286 mm, 71.7550 mm) | | Point 7: | (5.1562 mm, 79.6036 mm) | | Point 8: | (20.0660 mm, 79.2988 mm) | | Point 9: | (17.7800 mm, 30.4800 mm) | | Point 10: | (0.0000 mm, 0.0000 mm) | | Width: | 1.2170 inches (30.9118 mm) | | Height: | 3.1340 inches (79.6036 mm) |
