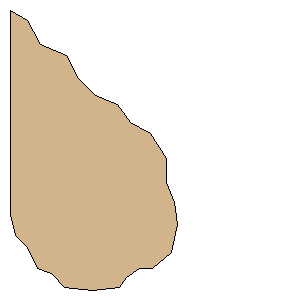

Estes Rock-It #2146 Freeform Fin Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 75.0000 mm)
Point 2:(2.0000 mm, 82.0000 mm)
Point 3:(6.0000 mm, 86.0000 mm)
Point 4:(10.0000 mm, 94.0000 mm)
Point 5:(15.0000 mm, 96.0000 mm)
Point 6:(20.0000 mm, 101.0000 mm)
Point 7:(30.0000 mm, 102.0000 mm)
Point 8:(40.0000 mm, 101.0000 mm)
Point 9:(42.5000 mm, 97.5000 mm)
Point 10:(47.0000 mm, 94.0000 mm)
Point 11:(52.0000 mm, 94.0000 mm)
Point 12:(59.0000 mm, 88.5000 mm)
Point 13:(61.0000 mm, 78.0000 mm)
Point 14:(60.0000 mm, 70.0000 mm)
Point 15:(57.0000 mm, 63.0000 mm)
Point 16:(57.0000 mm, 54.0000 mm)
Point 17:(51.0000 mm, 45.0000 mm)
Point 18:(44.0000 mm, 41.0000 mm)
Point 19:(39.0000 mm, 34.5000 mm)
Point 20:(31.0000 mm, 31.0000 mm)
Point 21:(24.5000 mm, 24.5000 mm)
Point 22:(20.5000 mm, 16.5000 mm)
Point 23:(11.0000 mm, 12.5000 mm)
Point 24:(6.5000 mm, 4.0000 mm)
Point 25:(0.0000 mm, 0.0000 mm)
Width:2.9528 inches (75.0000 mm)
Height:4.0157 inches (102.0000 mm)
