Rocketry Parts Database >> Fins >>

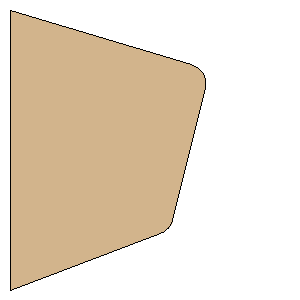

Cherokee D Estes K-47 Freeform F Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 88.8803 mm)
Point 2:(47.6762 mm, 71.0202 mm)
Point 3:(48.2402 mm, 70.7772 mm)
Point 4:(48.7780 mm, 70.4809 mm)
Point 5:(49.2847 mm, 70.1341 mm)
Point 6:(49.7556 mm, 69.7399 mm)
Point 7:(50.1861 mm, 69.3021 mm)
Point 8:(50.5724 mm, 68.8247 mm)
Point 9:(50.9107 mm, 68.3123 mm)
Point 10:(51.1980 mm, 67.7696 mm)
Point 11:(51.4315 mm, 67.2017 mm)
Point 12:(51.6090 mm, 66.6139 mm)
Point 13:(62.0299 mm, 24.9305 mm)
Point 14:(62.1923 mm, 23.9773 mm)
Point 15:(62.2081 mm, 23.0104 mm)
Point 16:(62.0769 mm, 22.0523 mm)
Point 17:(61.8017 mm, 21.1253 mm)
Point 18:(61.3890 mm, 20.2508 mm)
Point 19:(60.8483 mm, 19.4491 mm)
Point 20:(60.1921 mm, 18.7388 mm)
Point 21:(59.4356 mm, 18.1364 mm)
Point 22:(57.6941 mm, 17.3082 mm)
Point 23:(0.0000 mm, 0.0000 mm)
Width:3.4992 inches (88.8803 mm)
Height:3.4992 inches (88.8803 mm)
