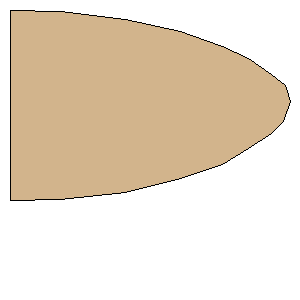

Estes - Andromeda Freeform Fin S Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 76.9820 mm) | | Point 2: | (20.5268 mm, 76.2887 mm) | | Point 3: | (46.3945 mm, 73.6152 mm) | | Point 4: | (68.8741 mm, 67.8593 mm) | | Point 5: | (85.6039 mm, 62.1034 mm) | | Point 6: | (96.2450 mm, 55.7416 mm) | | Point 7: | (105.6360 mm, 49.6827 mm) | | Point 8: | (110.4830 mm, 44.8356 mm) | | Point 9: | (112.9070 mm, 36.9513 mm) | | Point 10: | (111.0890 mm, 30.2943 mm) | | Point 11: | (105.6360 mm, 26.0531 mm) | | Point 12: | (96.2450 mm, 19.6913 mm) | | Point 13: | (85.6039 mm, 14.8442 mm) | | Point 14: | (68.8741 mm, 8.7854 mm) | | Point 15: | (46.4563 mm, 3.6353 mm) | | Point 16: | (20.3487 mm, 0.4106 mm) | | Point 17: | (0.0000 mm, 0.0000 mm) | | Width: | 4.4452 inches (112.9070 mm) | | Height: | 3.0308 inches (76.9820 mm) |
