Semroc Twister Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |

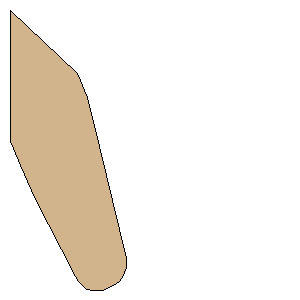

Download as PDF | Point 1: | (0.0000 mm, 38.8620 mm) | | Point 2: | (3.0480 mm, 45.7200 mm) | | Point 3: | (7.1120 mm, 55.3720 mm) | | Point 4: | (19.3040 mm, 78.4860 mm) | | Point 5: | (20.0660 mm, 80.0100 mm) | | Point 6: | (21.3360 mm, 81.2800 mm) | | Point 7: | (22.6060 mm, 82.2960 mm) | | Point 8: | (24.6380 mm, 82.5500 mm) | | Point 9: | (27.1780 mm, 82.5500 mm) | | Point 10: | (28.7020 mm, 82.0420 mm) | | Point 11: | (30.4800 mm, 81.2800 mm) | | Point 12: | (32.2580 mm, 80.0100 mm) | | Point 13: | (33.5280 mm, 78.2320 mm) | | Point 14: | (34.2900 mm, 75.9460 mm) | | Point 15: | (34.2900 mm, 73.1520 mm) | | Point 16: | (24.3840 mm, 31.7500 mm) | | Point 17: | (23.8760 mm, 29.7180 mm) | | Point 18: | (22.8600 mm, 25.6540 mm) | | Point 19: | (22.0980 mm, 23.6220 mm) | | Point 20: | (20.8280 mm, 20.8280 mm) | | Point 21: | (19.8120 mm, 18.7960 mm) | | Point 22: | (0.0000 mm, 0.0000 mm) | | Width: | 1.5300 inches (38.8620 mm) | | Height: | 3.2500 inches (82.5500 mm) |
