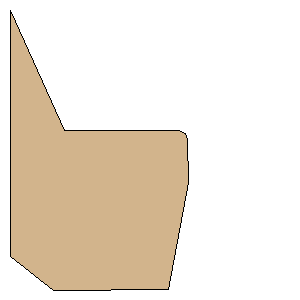

Denton - Estes Payloader II.rkt Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 71.3740 mm) | | Point 2: | (12.7140 mm, 81.0260 mm) | | Point 3: | (45.9740 mm, 80.9625 mm) | | Point 4: | (51.5620 mm, 50.0063 mm) | | Point 5: | (51.4127 mm, 37.4722 mm) | | Point 6: | (51.2111 mm, 36.5101 mm) | | Point 7: | (50.6593 mm, 35.6967 mm) | | Point 8: | (48.8758 mm, 34.9624 mm) | | Point 9: | (15.7480 mm, 34.9250 mm) | | Point 10: | (0.0000 mm, 0.0000 mm) | | Width: | 2.8100 inches (71.3740 mm) | | Height: | 3.1900 inches (81.0260 mm) |
