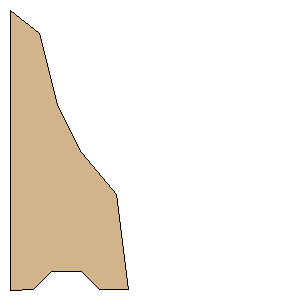

Blue Needle Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 37.3880 mm) | | Point 2: | (3.1750 mm, 37.3063 mm) | | Point 3: | (5.5563 mm, 34.9250 mm) | | Point 4: | (9.5250 mm, 34.9250 mm) | | Point 5: | (11.9063 mm, 37.3063 mm) | | Point 6: | (15.8750 mm, 37.3063 mm) | | Point 7: | (14.2875 mm, 24.6063 mm) | | Point 8: | (9.5250 mm, 19.0500 mm) | | Point 9: | (6.3500 mm, 12.7000 mm) | | Point 10: | (3.9688 mm, 3.1750 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Width: | 1.4720 inches (37.3880 mm) | | Height: | 1.4720 inches (37.3880 mm) |
