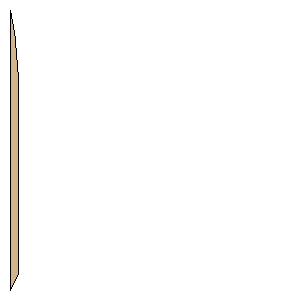

Clipper.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 203.1850 mm) | | Point 2: | (6.2270 mm, 191.4230 mm) | | Point 3: | (6.2270 mm, 51.8824 mm) | | Point 4: | (6.2267 mm, 51.7607 mm) | | Point 5: | (6.2258 mm, 51.6390 mm) | | Point 6: | (6.2244 mm, 51.5173 mm) | | Point 7: | (6.2223 mm, 51.3956 mm) | | Point 8: | (6.2197 mm, 51.2740 mm) | | Point 9: | (6.2165 mm, 51.1523 mm) | | Point 10: | (6.2127 mm, 51.0306 mm) | | Point 11: | (6.2084 mm, 50.9090 mm) | | Point 12: | (6.2034 mm, 50.7874 mm) | | Point 13: | (6.1979 mm, 50.6658 mm) | | Point 14: | (6.1917 mm, 50.5443 mm) | | Point 15: | (6.1850 mm, 50.4227 mm) | | Point 16: | (6.1778 mm, 50.3012 mm) | | Point 17: | (6.1614 mm, 50.0584 mm) | | Point 18: | (4.2549 mm, 23.5794 mm) | | Point 19: | (4.2404 mm, 23.3878 mm) | | Point 20: | (4.2245 mm, 23.1963 mm) | | Point 21: | (4.2070 mm, 23.0050 mm) | | Point 22: | (4.1882 mm, 22.8138 mm) | | Point 23: | (4.1678 mm, 22.6227 mm) | | Point 24: | (4.1461 mm, 22.4318 mm) | | Point 25: | (4.1229 mm, 22.2410 mm) | | Point 26: | (4.0982 mm, 22.0505 mm) | | Point 27: | (4.0722 mm, 21.8601 mm) | | Point 28: | (4.0446 mm, 21.6699 mm) | | Point 29: | (4.0157 mm, 21.4800 mm) | | Point 30: | (3.9853 mm, 21.2903 mm) | | Point 31: | (3.9534 mm, 21.1008 mm) | | Point 32: | (3.9202 mm, 20.9115 mm) | | Point 33: | (3.8855 mm, 20.7225 mm) | | Point 34: | (0.0000 mm, 0.0000 mm) | | Width: | 7.9994 inches (203.1850 mm) | | Height: | 7.9994 inches (203.1850 mm) |
