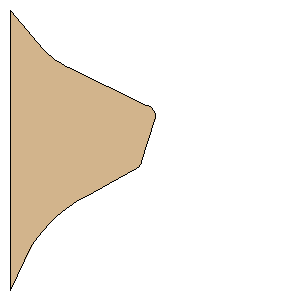

Arapahoe E Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 150.7989 mm) | | Point 2: | (7.6317 mm, 134.8016 mm) | | Point 3: | (9.8188 mm, 130.5636 mm) | | Point 4: | (12.2668 mm, 126.4706 mm) | | Point 5: | (14.9660 mm, 122.5389 mm) | | Point 6: | (17.9059 mm, 118.7836 mm) | | Point 7: | (21.0750 mm, 115.2197 mm) | | Point 8: | (24.4608 mm, 111.8610 mm) | | Point 9: | (28.0501 mm, 108.7206 mm) | | Point 10: | (31.8288 mm, 105.8110 mm) | | Point 11: | (35.7821 mm, 103.1434 mm) | | Point 12: | (39.8946 mm, 100.7283 mm) | | Point 13: | (67.9432 mm, 85.4164 mm) | | Point 14: | (68.3711 mm, 85.1664 mm) | | Point 15: | (68.7783 mm, 84.8838 mm) | | Point 16: | (69.1621 mm, 84.5702 mm) | | Point 17: | (69.5204 mm, 84.2277 mm) | | Point 18: | (69.8508 mm, 83.8583 mm) | | Point 19: | (70.1514 mm, 83.4643 mm) | | Point 20: | (70.4204 mm, 83.0480 mm) | | Point 21: | (70.6561 mm, 82.6120 mm) | | Point 22: | (70.8570 mm, 82.1589 mm) | | Point 23: | (71.0220 mm, 81.6916 mm) | | Point 24: | (77.9550 mm, 59.3087 mm) | | Point 25: | (78.1810 mm, 58.3147 mm) | | Point 26: | (78.2450 mm, 57.2972 mm) | | Point 27: | (78.1454 mm, 56.2826 mm) | | Point 28: | (77.8847 mm, 55.2971 mm) | | Point 29: | (77.4696 mm, 54.3660 mm) | | Point 30: | (76.9109 mm, 53.5132 mm) | | Point 31: | (76.2229 mm, 52.7609 mm) | | Point 32: | (75.4234 mm, 52.1284 mm) | | Point 33: | (74.5330 mm, 51.6320 mm) | | Point 34: | (73.5746 mm, 51.2844 mm) | | Point 35: | (31.5466 mm, 30.9279 mm) | | Point 36: | (29.6077 mm, 29.9369 mm) | | Point 37: | (27.7130 mm, 28.8637 mm) | | Point 38: | (25.8661 mm, 27.7104 mm) | | Point 39: | (24.0703 mm, 26.4789 mm) | | Point 40: | (22.3289 mm, 25.1716 mm) | | Point 41: | (20.6451 mm, 23.7909 mm) | | Point 42: | (19.0221 mm, 22.3393 mm) | | Point 43: | (17.4627 mm, 20.8195 mm) | | Point 44: | (14.5465 mm, 17.5865 mm) | | Point 45: | (0.0000 mm, 0.0000 mm) | | Width: | 5.9370 inches (150.7989 mm) | | Height: | 5.9370 inches (150.7989 mm) |
