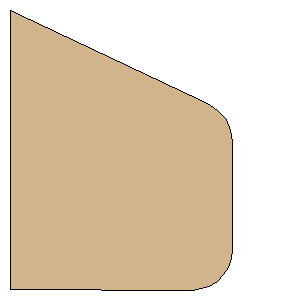

WAC Corporal - 18mm Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 48.4700 mm) | | Point 2: | (31.6020 mm, 48.5200 mm) | | Point 3: | (33.1614 mm, 48.3466 mm) | | Point 4: | (34.6431 mm, 47.8302 mm) | | Point 5: | (35.9725 mm, 46.9968 mm) | | Point 6: | (37.0829 mm, 45.8882 mm) | | Point 7: | (37.9184 mm, 44.5601 mm) | | Point 8: | (38.4372 mm, 43.0792 mm) | | Point 9: | (38.6130 mm, 41.5200 mm) | | Point 10: | (38.6131 mm, 22.7677 mm) | | Point 11: | (38.2656 mm, 20.8118 mm) | | Point 12: | (37.4597 mm, 19.0193 mm) | | Point 13: | (36.1873 mm, 17.5215 mm) | | Point 14: | (34.5487 mm, 16.4365 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 1.9083 inches (48.4700 mm) | | Height: | 1.9102 inches (48.5200 mm) |
