Rocketry Parts Database >> Fins >>

Scimitar Flames Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

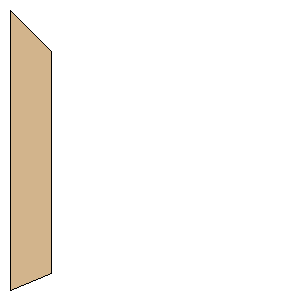

Point 1:(0.0000 mm, 215.9000 mm)
Point 2:(31.7500 mm, 203.0250 mm)
Point 3:(31.7500 mm, 184.1500 mm)
Point 4:(31.7500 mm, 161.7010 mm)
Point 5:(31.7500 mm, 128.0160 mm)
Point 6:(31.7690 mm, 63.5000 mm)
Point 7:(31.7500 mm, 31.7500 mm)
Point 8:(0.0000 mm, 0.0000 mm)
Width:8.5000 inches (215.9000 mm)
Height:8.5000 inches (215.9000 mm)
