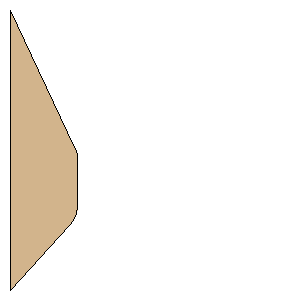

Flux Probe Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 153.7964 mm) | | Point 2: | (32.9563 mm, 118.4112 mm) | | Point 3: | (35.1342 mm, 115.3851 mm) | | Point 4: | (36.4985 mm, 111.9155 mm) | | Point 5: | (36.9650 mm, 108.2165 mm) | | Point 6: | (36.9873 mm, 82.0430 mm) | | Point 7: | (36.8279 mm, 79.8493 mm) | | Point 8: | (36.3495 mm, 77.7024 mm) | | Point 9: | (35.5622 mm, 75.6487 mm) | | Point 10: | (0.0000 mm, 0.0000 mm) | | Width: | 6.0550 inches (153.7964 mm) | | Height: | 6.0550 inches (153.7964 mm) |
