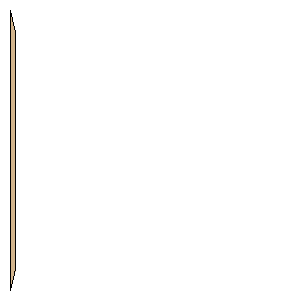

BOMARC, 1/24th Scale Freeform Fi Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 419.1000 mm) | | Point 2: | (2.2098 mm, 412.1890 mm) | | Point 3: | (3.5908 mm, 407.2170 mm) | | Point 4: | (5.5244 mm, 400.8640 mm) | | Point 5: | (6.6292 mm, 396.1680 mm) | | Point 6: | (7.9375 mm, 387.3500 mm) | | Point 7: | (7.9554 mm, 35.5834 mm) | | Point 8: | (7.9116 mm, 34.0582 mm) | | Point 9: | (7.7946 mm, 32.5368 mm) | | Point 10: | (7.6046 mm, 31.0229 mm) | | Point 11: | (7.3422 mm, 29.5198 mm) | | Point 12: | (7.0078 mm, 28.0310 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Width: | 16.5000 inches (419.1000 mm) | | Height: | 16.5000 inches (419.1000 mm) |
