Rocketry Parts Database >> Fins >>

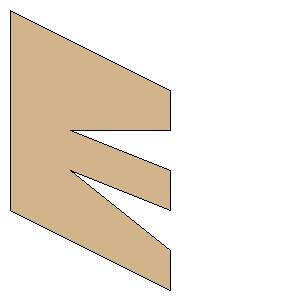

Slow Mover Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 127.3579 mm)
Point 2:(101.6000 mm, 177.8000 mm)
Point 3:(101.6000 mm, 152.4000 mm)
Point 4:(38.1000 mm, 101.6000 mm)
Point 5:(101.6000 mm, 127.0000 mm)
Point 6:(101.6000 mm, 101.6000 mm)
Point 7:(38.1000 mm, 76.2000 mm)
Point 8:(101.6000 mm, 76.2000 mm)
Point 9:(101.6000 mm, 50.8000 mm)
Point 10:(0.0000 mm, 0.0000 mm)
Width:5.0141 inches (127.3579 mm)
Height:7.0000 inches (177.8000 mm)
