Rocketry Parts Database >> Fins >>

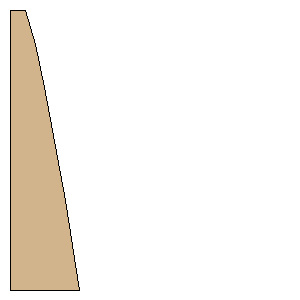

Estes Phoenix Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 229.1420 mm)
Point 2:(57.1564 mm, 229.1420 mm)
Point 3:(45.4302 mm, 155.9416 mm)
Point 4:(28.3737 mm, 63.1973 mm)
Point 5:(20.9115 mm, 28.3737 mm)
Point 6:(12.7387 mm, -0.0536 mm)
Point 7:(0.0000 mm, 0.0000 mm)
Width:9.0213 inches (229.1420 mm)
Height:9.0235 inches (229.1957 mm)
