Rocketry Parts Database >> Fins >>

Estes Hi-G Payloader Freeform Fi Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

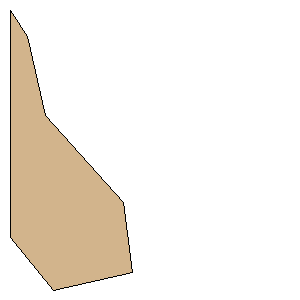

Point 1:(0.0000 mm, 66.0400 mm)
Point 2:(12.7000 mm, 81.2800 mm)
Point 3:(35.5600 mm, 76.2000 mm)
Point 4:(33.0200 mm, 55.8800 mm)
Point 5:(10.1600 mm, 30.4800 mm)
Point 6:(5.0800 mm, 7.6200 mm)
Point 7:(0.0000 mm, 0.0000 mm)
Width:2.6000 inches (66.0400 mm)
Height:3.2000 inches (81.2800 mm)
