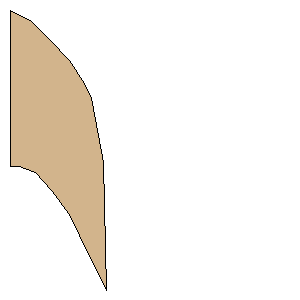

Ross's Interpretation of the TCC Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 70.9959 mm) | | Point 2: | (4.2052 mm, 70.9610 mm) | | Point 3: | (11.7530 mm, 74.0116 mm) | | Point 4: | (18.8134 mm, 82.1867 mm) | | Point 5: | (22.9009 mm, 87.3890 mm) | | Point 6: | (26.6169 mm, 92.5914 mm) | | Point 7: | (31.4476 mm, 102.6245 mm) | | Point 8: | (44.0742 mm, 127.2529 mm) | | Point 9: | (42.7115 mm, 69.4790 mm) | | Point 10: | (36.8589 mm, 40.2161 mm) | | Point 11: | (32.9319 mm, 31.8874 mm) | | Point 12: | (26.9885 mm, 23.1029 mm) | | Point 13: | (17.9077 mm, 13.1828 mm) | | Point 14: | (9.8951 mm, 5.2663 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 2.7951 inches (70.9959 mm) | | Height: | 5.0100 inches (127.2529 mm) |
