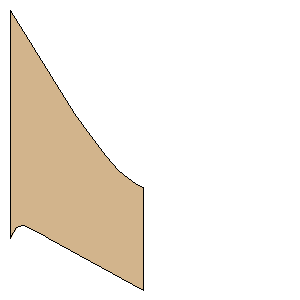

Quasar 2.4x Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 228.8138 mm) | | Point 2: | (1.5772 mm, 226.3764 mm) | | Point 3: | (3.1543 mm, 223.2221 mm) | | Point 4: | (4.4447 mm, 221.5015 mm) | | Point 5: | (6.5954 mm, 218.2038 mm) | | Point 6: | (9.1762 mm, 216.6267 mm) | | Point 7: | (13.0474 mm, 216.0531 mm) | | Point 8: | (16.7753 mm, 216.7700 mm) | | Point 9: | (22.5104 mm, 219.4942 mm) | | Point 10: | (27.6720 mm, 222.3618 mm) | | Point 11: | (32.1167 mm, 224.9426 mm) | | Point 12: | (38.7121 mm, 228.8138 mm) | | Point 13: | (133.4651 mm, 280.2866 mm) | | Point 14: | (133.4651 mm, 177.8343 mm) | | Point 15: | (125.2428 mm, 173.8456 mm) | | Point 16: | (118.3714 mm, 168.9375 mm) | | Point 17: | (108.8824 mm, 160.7573 mm) | | Point 18: | (96.4486 mm, 146.3602 mm) | | Point 19: | (80.0882 mm, 125.7462 mm) | | Point 20: | (64.7095 mm, 103.1689 mm) | | Point 21: | (0.0000 mm, 0.0000 mm) | | Width: | 9.0084 inches (228.8138 mm) | | Height: | 11.0349 inches (280.2866 mm) |
