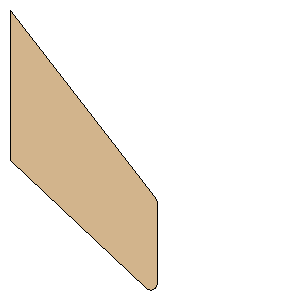

Tangent Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 71.1000 mm) | | Point 2: | (64.6137 mm, 131.5371 mm) | | Point 3: | (65.5925 mm, 132.1486 mm) | | Point 4: | (66.7298 mm, 132.3454 mm) | | Point 5: | (67.8572 mm, 132.0982 mm) | | Point 6: | (68.8078 mm, 131.4437 mm) | | Point 7: | (69.4410 mm, 130.4787 mm) | | Point 8: | (69.6630 mm, 129.3461 mm) | | Point 9: | (69.6630 mm, 91.9968 mm) | | Point 10: | (69.6268 mm, 91.3391 mm) | | Point 11: | (69.5188 mm, 90.6894 mm) | | Point 12: | (69.3402 mm, 90.0554 mm) | | Point 13: | (69.0932 mm, 89.4448 mm) | | Point 14: | (68.4066 mm, 88.3228 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 2.7992 inches (71.1000 mm) | | Height: | 5.2104 inches (132.3454 mm) |
