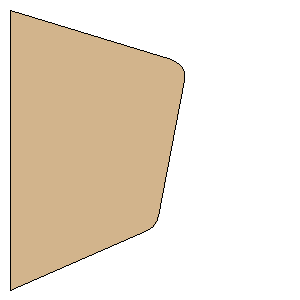

Cherokee_Triple-D.rkt Freeform F Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 97.0280 mm) | | Point 2: | (47.7245 mm, 76.2678 mm) | | Point 3: | (48.2776 mm, 75.9946 mm) | | Point 4: | (48.8015 mm, 75.6689 mm) | | Point 5: | (49.2914 mm, 75.2940 mm) | | Point 6: | (49.7426 mm, 74.8733 mm) | | Point 7: | (50.1508 mm, 74.4108 mm) | | Point 8: | (50.5122 mm, 73.9109 mm) | | Point 9: | (50.8234 mm, 73.3783 mm) | | Point 10: | (51.0815 mm, 72.8180 mm) | | Point 11: | (51.2839 mm, 72.2353 mm) | | Point 12: | (51.4289 mm, 71.6357 mm) | | Point 13: | (60.4755 mm, 24.5505 mm) | | Point 14: | (60.5835 mm, 23.6294 mm) | | Point 15: | (60.5562 mm, 22.7024 mm) | | Point 16: | (60.3942 mm, 21.7892 mm) | | Point 17: | (60.1008 mm, 20.9094 mm) | | Point 18: | (59.6825 mm, 20.0817 mm) | | Point 19: | (59.1480 mm, 19.3238 mm) | | Point 20: | (58.5089 mm, 18.6518 mm) | | Point 21: | (57.7787 mm, 18.0801 mm) | | Point 22: | (56.1089 mm, 17.2838 mm) | | Point 23: | (0.0000 mm, 0.0000 mm) | | Width: | 3.8200 inches (97.0280 mm) | | Height: | 3.8200 inches (97.0280 mm) |
