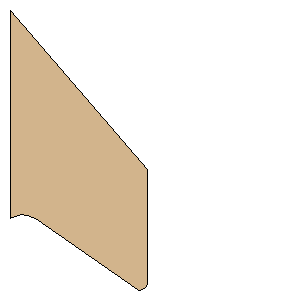

Semroc-Centurion-F.rkt Freeform Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 100.4210 mm) | | Point 2: | (1.4224 mm, 99.5680 mm) | | Point 3: | (2.8448 mm, 98.9990 mm) | | Point 4: | (5.6896 mm, 98.4301 mm) | | Point 5: | (8.2499 mm, 98.7146 mm) | | Point 6: | (12.2326 mm, 100.4210 mm) | | Point 7: | (61.1632 mm, 134.2750 mm) | | Point 8: | (62.3011 mm, 134.5590 mm) | | Point 9: | (63.7235 mm, 134.2750 mm) | | Point 10: | (65.1459 mm, 133.4210 mm) | | Point 11: | (66.2838 mm, 131.9990 mm) | | Point 12: | (66.2838 mm, 76.8096 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Width: | 3.9536 inches (100.4210 mm) | | Height: | 5.2976 inches (134.5590 mm) |
