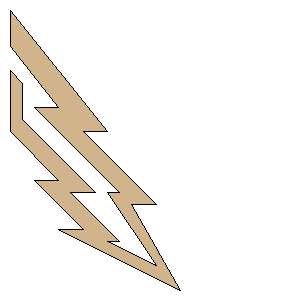

Omelette of Zeus Freeform Fin Se Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 6.3500 mm) | | Point 2: | (0.0000 mm, 9.5250 mm) | | Point 3: | (12.7000 mm, 25.4000 mm) | | Point 4: | (6.3500 mm, 25.4000 mm) | | Point 5: | (25.4000 mm, 44.4500 mm) | | Point 6: | (28.5750 mm, 47.6250 mm) | | Point 7: | (25.4000 mm, 47.6250 mm) | | Point 8: | (38.1000 mm, 66.6750 mm) | | Point 9: | (25.4000 mm, 60.3250 mm) | | Point 10: | (28.5750 mm, 60.3250 mm) | | Point 11: | (15.8750 mm, 47.6250 mm) | | Point 12: | (22.2250 mm, 47.6250 mm) | | Point 13: | (3.1750 mm, 28.5750 mm) | | Point 14: | (3.1750 mm, 19.0500 mm) | | Point 15: | (0.0000 mm, 15.8750 mm) | | Point 16: | (0.0000 mm, 31.7500 mm) | | Point 17: | (12.7000 mm, 44.4500 mm) | | Point 18: | (6.3500 mm, 44.4500 mm) | | Point 19: | (19.0500 mm, 57.1500 mm) | | Point 20: | (12.7000 mm, 57.1500 mm) | | Point 21: | (44.4500 mm, 73.0250 mm) | | Point 22: | (31.7500 mm, 50.8000 mm) | | Point 23: | (38.1000 mm, 50.8000 mm) | | Point 24: | (19.0500 mm, 31.7500 mm) | | Point 25: | (25.4000 mm, 31.7500 mm) | | Point 26: | (0.0000 mm, 0.0000 mm) | | Width: | 1.7500 inches (44.4500 mm) | | Height: | 2.8750 inches (73.0250 mm) |
