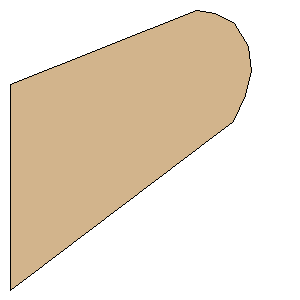

Fliskits Drake Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 69.9722 mm) | | Point 2: | (76.2000 mm, 12.7000 mm) | | Point 3: | (80.1652 mm, 3.8588 mm) | | Point 4: | (82.1097 mm, -4.8915 mm) | | Point 5: | (81.1547 mm, -12.5314 mm) | | Point 6: | (81.1513 mm, -12.5590 mm) | | Point 7: | (81.1477 mm, -12.5866 mm) | | Point 8: | (81.1442 mm, -12.6142 mm) | | Point 9: | (81.1405 mm, -12.6418 mm) | | Point 10: | (81.1369 mm, -12.6695 mm) | | Point 11: | (81.1332 mm, -12.6971 mm) | | Point 12: | (81.1294 mm, -12.7246 mm) | | Point 13: | (81.1256 mm, -12.7522 mm) | | Point 14: | (81.1217 mm, -12.7798 mm) | | Point 15: | (81.1178 mm, -12.8074 mm) | | Point 16: | (76.3216 mm, -20.7198 mm) | | Point 17: | (70.0813 mm, -24.3599 mm) | | Point 18: | (63.5000 mm, -25.4000 mm) | | Point 19: | (0.0000 mm, 0.0000 mm) | | Width: | 3.2327 inches (82.1097 mm) | | Height: | 3.7548 inches (95.3722 mm) |
