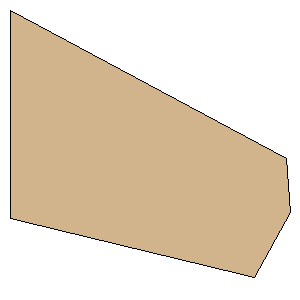

GBU-24 Paveway III Freeform Fin Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 56.3500 mm)
Point 2:(65.9934 mm, 72.1130 mm)
Point 3:(75.6000 mm, 54.5768 mm)
Point 4:(74.7876 mm, 40.0460 mm)
Point 5:(0.0000 mm, 0.0000 mm)
Width:2.9764 inches (75.6000 mm)
Height:2.8391 inches (72.1130 mm)
