Estes Rock-It #2146 Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |

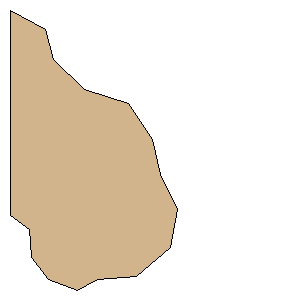

Download as PDF | Point 1: | (0.0000 mm, 75.0000 mm) | | Point 2: | (7.0000 mm, 80.0000 mm) | | Point 3: | (8.0000 mm, 90.0000 mm) | | Point 4: | (14.0000 mm, 98.0000 mm) | | Point 5: | (24.5000 mm, 102.0000 mm) | | Point 6: | (32.0000 mm, 98.0000 mm) | | Point 7: | (46.0000 mm, 97.0000 mm) | | Point 8: | (58.5000 mm, 86.5000 mm) | | Point 9: | (61.0000 mm, 72.5000 mm) | | Point 10: | (55.0000 mm, 60.0000 mm) | | Point 11: | (52.0000 mm, 47.0000 mm) | | Point 12: | (43.0000 mm, 34.0000 mm) | | Point 13: | (27.0000 mm, 29.0000 mm) | | Point 14: | (16.0000 mm, 18.0000 mm) | | Point 15: | (13.0000 mm, 7.0000 mm) | | Point 16: | (0.0000 mm, 0.0000 mm) | | Width: | 2.9528 inches (75.0000 mm) | | Height: | 4.0157 inches (102.0000 mm) |
