Rocketry Parts Database >> Fins >>

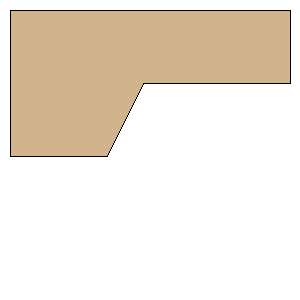

Estes Three Ring Stage Rocket Fr Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 19.0500 mm)
Point 2:(12.7000 mm, 19.0500 mm)
Point 3:(17.4625 mm, 9.5250 mm)
Point 4:(36.5125 mm, 9.5250 mm)
Point 5:(36.5125 mm, 0.0000 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:1.4375 inches (36.5125 mm)
Height:0.7500 inches (19.0500 mm)
