Rocketry Parts Database >> Fins >>

Semroc Gee'hod Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

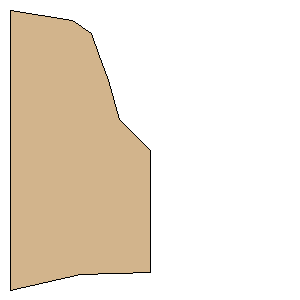

Point 1:(0.0000 mm, 76.2000 mm)
Point 2:(19.0780 mm, 72.0827 mm)
Point 3:(38.1000 mm, 71.3740 mm)
Point 4:(38.1000 mm, 38.1000 mm)
Point 5:(29.8094 mm, 29.8094 mm)
Point 6:(26.7766 mm, 19.3165 mm)
Point 7:(24.3620 mm, 12.5557 mm)
Point 8:(22.2250 mm, 6.3500 mm)
Point 9:(17.1184 mm, 2.8975 mm)
Point 10:(0.0000 mm, 0.0000 mm)
Width:3.0000 inches (76.2000 mm)
Height:3.0000 inches (76.2000 mm)
