Arcas Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |

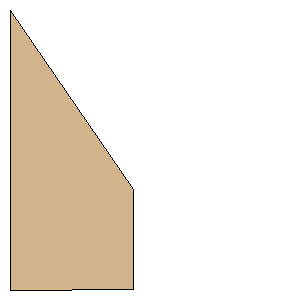

Download as PDF | Point 1: | (0.0000 mm, 241.7001 mm) | | Point 2: | (106.9124 mm, 241.0110 mm) | | Point 3: | (106.8960 mm, 197.0755 mm) | | Point 4: | (106.8960 mm, 178.0191 mm) | | Point 5: | (106.8960 mm, 170.6083 mm) | | Point 6: | (106.8960 mm, 167.4323 mm) | | Point 7: | (106.8960 mm, 161.0801 mm) | | Point 8: | (106.8960 mm, 157.9041 mm) | | Point 9: | (106.3653 mm, 154.9715 mm) | | Point 10: | (0.0000 mm, 0.0000 mm) | | Width: | 9.5158 inches (241.7001 mm) | | Height: | 9.5158 inches (241.7001 mm) |
