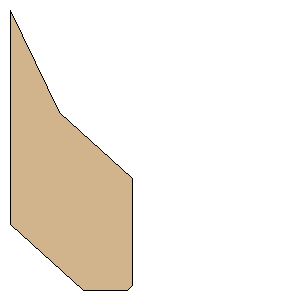

Semroc-Aphelion.rkt Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 77.7240 mm) | | Point 2: | (26.6700 mm, 101.6000 mm) | | Point 3: | (42.6720 mm, 101.6000 mm) | | Point 4: | (44.4500 mm, 100.0760 mm) | | Point 5: | (44.4500 mm, 61.2140 mm) | | Point 6: | (17.7800 mm, 37.3380 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Width: | 3.0600 inches (77.7240 mm) | | Height: | 4.0000 inches (101.6000 mm) |
