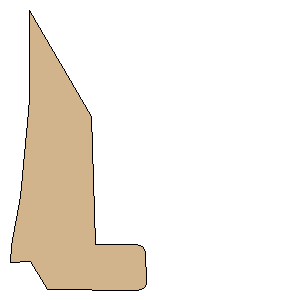

Hermes A1.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 25.4000 mm) | | Point 2: | (-0.6096 mm, 32.0802 mm) | | Point 3: | (-2.5654 mm, 53.1114 mm) | | Point 4: | (-5.0800 mm, 67.2846 mm) | | Point 5: | (-5.5118 mm, 71.9074 mm) | | Point 6: | (0.2286 mm, 71.7550 mm) | | Point 7: | (5.1562 mm, 79.6036 mm) | | Point 8: | (30.9030 mm, 79.8416 mm) | | Point 9: | (31.9139 mm, 79.6419 mm) | | Point 10: | (32.7622 mm, 79.0572 mm) | | Point 11: | (33.3085 mm, 78.1835 mm) | | Point 12: | (33.4628 mm, 77.1648 mm) | | Point 13: | (33.0414 mm, 69.3593 mm) | | Point 14: | (32.8481 mm, 68.3873 mm) | | Point 15: | (32.2975 mm, 67.5632 mm) | | Point 16: | (31.4734 mm, 67.0126 mm) | | Point 17: | (30.5014 mm, 66.8193 mm) | | Point 18: | (18.8596 mm, 66.8193 mm) | | Point 19: | (17.7800 mm, 30.4800 mm) | | Point 20: | (0.0000 mm, 0.0000 mm) | | Width: | 1.5344 inches (38.9746 mm) | | Height: | 3.1434 inches (79.8416 mm) |
