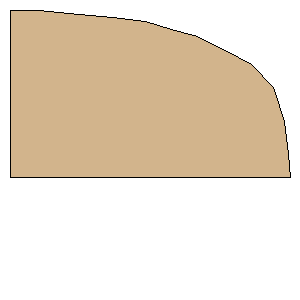

Sunward Penguin Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 52.0700 mm) | | Point 2: | (87.1931 mm, 52.0700 mm) | | Point 3: | (86.8680 mm, 44.9760 mm) | | Point 4: | (85.6204 mm, 34.6309 mm) | | Point 5: | (81.9560 mm, 24.0562 mm) | | Point 6: | (75.2524 mm, 16.9802 mm) | | Point 7: | (67.0591 mm, 12.5111 mm) | | Point 8: | (58.3095 mm, 8.1476 mm) | | Point 9: | (50.3002 mm, 5.8075 mm) | | Point 10: | (42.1069 mm, 3.5730 mm) | | Point 11: | (31.8263 mm, 2.3544 mm) | | Point 12: | (18.1708 mm, 1.1130 mm) | | Point 13: | (9.0672 mm, -0.1284 mm) | | Point 14: | (0.0000 mm, 0.0000 mm) | | Width: | 3.4328 inches (87.1931 mm) | | Height: | 2.0551 inches (52.1984 mm) |
