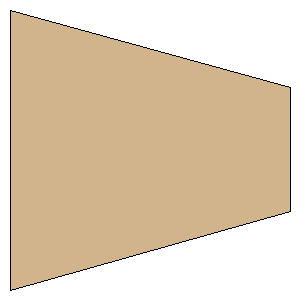

Estes Nike Ram Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.2500 inches (57.1500 mm) | | Tip Chord: | 1.0000 inches (25.4000 mm) | | Sweep Distance: | 0.6202 inches (15.7531 mm) | | SemiSpan: | 2.2500 inches (57.1500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (57.1500 mm, 15.7531 mm) | | Point 3: | (57.1500 mm, 41.1531 mm) | | Point 4: | (0.0000 mm, 57.1500 mm) | | Width: | 2.2500 inches (57.1500 mm) | | Height: | 2.2500 inches (57.1500 mm) |
