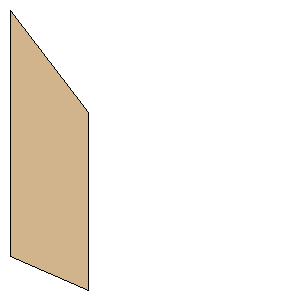

micro V-2 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.5700 inches (39.8780 mm) | | Tip Chord: | 1.1300 inches (28.7020 mm) | | Sweep Distance: | 0.6500 inches (16.5100 mm) | | SemiSpan: | 0.5000 inches (12.7000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (12.7000 mm, 16.5100 mm) | | Point 3: | (12.7000 mm, 45.2120 mm) | | Point 4: | (0.0000 mm, 39.8780 mm) | | Width: | 0.5000 inches (12.7000 mm) | | Height: | 1.7800 inches (45.2120 mm) |
