Rocketry Parts Database >> Fins >>

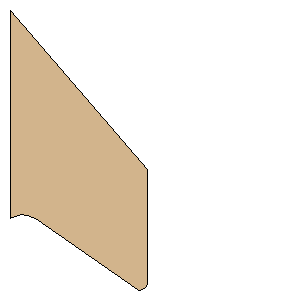

New Centurion Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 89.6620 mm)
Point 2:(1.2700 mm, 88.9000 mm)
Point 3:(2.5400 mm, 88.3920 mm)
Point 4:(5.0800 mm, 87.8840 mm)
Point 5:(7.3660 mm, 88.1380 mm)
Point 6:(10.9220 mm, 89.6620 mm)
Point 7:(54.6100 mm, 119.8880 mm)
Point 8:(55.6260 mm, 120.1420 mm)
Point 9:(56.8960 mm, 119.8880 mm)
Point 10:(58.1660 mm, 119.1260 mm)
Point 11:(59.1820 mm, 117.8560 mm)
Point 12:(59.1820 mm, 68.5800 mm)
Point 13:(0.0000 mm, 0.0000 mm)
Width:3.5300 inches (89.6620 mm)
Height:4.7300 inches (120.1420 mm)
