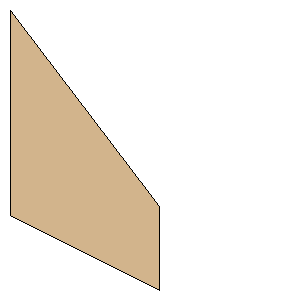

Quest Gamma Ray Trapezoid Fin Se Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.2862 inches (58.0695 mm) | | Tip Chord: | 0.9264 inches (23.5306 mm) | | Sweep Distance: | 2.1953 inches (55.7606 mm) | | SemiSpan: | 1.6618 inches (42.2097 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (42.2097 mm, 55.7606 mm) | | Point 3: | (42.2097 mm, 79.2912 mm) | | Point 4: | (0.0000 mm, 58.0695 mm) | | Width: | 1.6618 inches (42.2097 mm) | | Height: | 3.1217 inches (79.2912 mm) |
