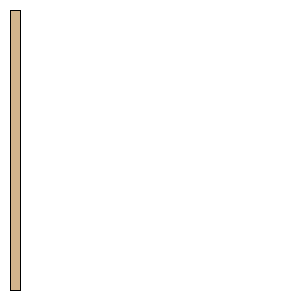

Standard Missile RIM-67a Trapezo Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 4.0000 inches (101.6000 mm) | | Tip Chord: | 4.0000 inches (101.6000 mm) | | Sweep Distance: | 0.0000 inches (0.0000 mm) | | SemiSpan: | 0.1500 inches (3.8100 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (3.8100 mm, 0.0000 mm) | | Point 3: | (3.8100 mm, 101.6000 mm) | | Point 4: | (0.0000 mm, 101.6000 mm) | | Width: | 0.1500 inches (3.8100 mm) | | Height: | 4.0000 inches (101.6000 mm) |
