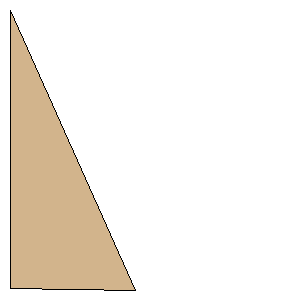

Estes V-2 K-22 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 0.4000 inches (10.1600 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 0.4022 inches (10.2159 mm) | | SemiSpan: | 0.1800 inches (4.5720 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (4.5720 mm, 10.2159 mm) | | Point 3: | (4.5720 mm, 10.2159 mm) | | Point 4: | (0.0000 mm, 10.1600 mm) | | Width: | 0.1800 inches (4.5720 mm) | | Height: | 0.4022 inches (10.2159 mm) |
