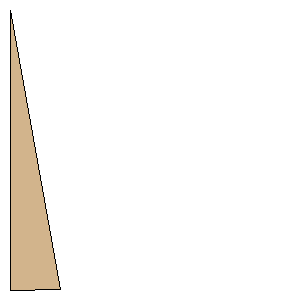

AGM-65 Maverick #2 Trapezoid Fin Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 6.0000 inches (152.4000 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 5.9979 inches (152.3467 mm) | | SemiSpan: | 1.0900 inches (27.6860 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (27.6860 mm, 152.3467 mm) | | Point 3: | (27.6860 mm, 152.3467 mm) | | Point 4: | (0.0000 mm, 152.4000 mm) | | Width: | 1.0900 inches (27.6860 mm) | | Height: | 6.0000 inches (152.4000 mm) |
