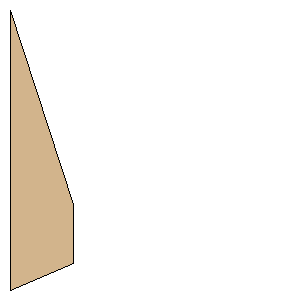

Kraken-Up Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 44.0000 inches (1,117.6000 mm) | | Tip Chord: | 9.3750 inches (238.1250 mm) | | Sweep Distance: | 30.5000 inches (774.7000 mm) | | SemiSpan: | 10.0000 inches (254.0000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (254.0000 mm, 774.7000 mm) | | Point 3: | (254.0000 mm, 1,012.8250 mm) | | Point 4: | (0.0000 mm, 1,117.6000 mm) | | Width: | 10.0000 inches (254.0000 mm) | | Height: | 44.0000 inches (1,117.6000 mm) |
