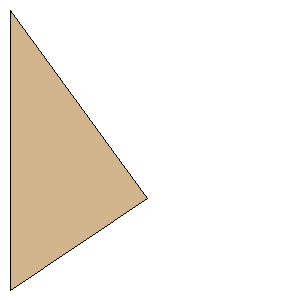

x-calibur_hamr_hmc.rkt Trapezoid Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 6.1250 inches (155.5750 mm) | | Tip Chord: | 0.0010 inches (0.0254 mm) | | Sweep Distance: | 4.1250 inches (104.7750 mm) | | SemiSpan: | 3.0000 inches (76.2000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (76.2000 mm, 104.7750 mm) | | Point 3: | (76.2000 mm, 104.8004 mm) | | Point 4: | (0.0000 mm, 155.5750 mm) | | Width: | 3.0000 inches (76.2000 mm) | | Height: | 6.1250 inches (155.5750 mm) |
