Rocketry Parts Database >> Fins >>

B-2 Smart Bomb Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

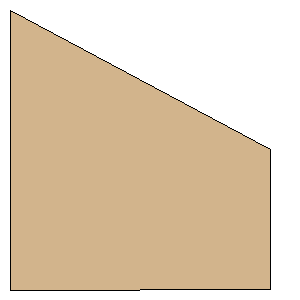

Root Chord:3.5000 inches (88.9000 mm)
Tip Chord:1.7500 inches (44.4500 mm)
Sweep Distance:1.7499 inches (44.4475 mm)
SemiSpan:3.2500 inches (82.5500 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(82.5500 mm, 44.4475 mm)
Point 3:(82.5500 mm, 88.8975 mm)
Point 4:(0.0000 mm, 88.9000 mm)
Width:3.2500 inches (82.5500 mm)
Height:3.5000 inches (88.9000 mm)
