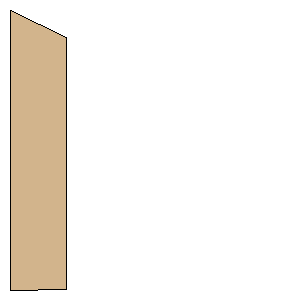

Custom Rockets - M320 Trapezoid Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:2.5000 inches (63.5000 mm)
Tip Chord:2.2500 inches (57.1500 mm)
Sweep Distance:0.2477 inches (6.2916 mm)
SemiSpan:0.5000 inches (12.7000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(12.7000 mm, 6.2916 mm)
Point 3:(12.7000 mm, 63.4416 mm)
Point 4:(0.0000 mm, 63.5000 mm)
Width:0.5000 inches (12.7000 mm)
Height:2.5000 inches (63.5000 mm)
