Rocketry Parts Database >> Fins >>

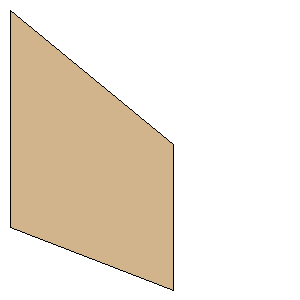

Estes - Screamer Trapezoid Fin S Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:1.5000 inches (38.1000 mm)
Tip Chord:1.0000 inches (25.4000 mm)
Sweep Distance:0.9274 inches (23.5560 mm)
SemiSpan:1.1250 inches (28.5750 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(28.5750 mm, 23.5560 mm)
Point 3:(28.5750 mm, 48.9560 mm)
Point 4:(0.0000 mm, 38.1000 mm)
Width:1.1250 inches (28.5750 mm)
Height:1.9274 inches (48.9560 mm)
